Goal

Design and Build a new tractive battery for the goldwing conversion

Requirements

Drop-in replacemen tractive battery for use on the goldwing conversion. Higher capacity and dischcharge capability as an upgrade.

Result / Current Incarnation

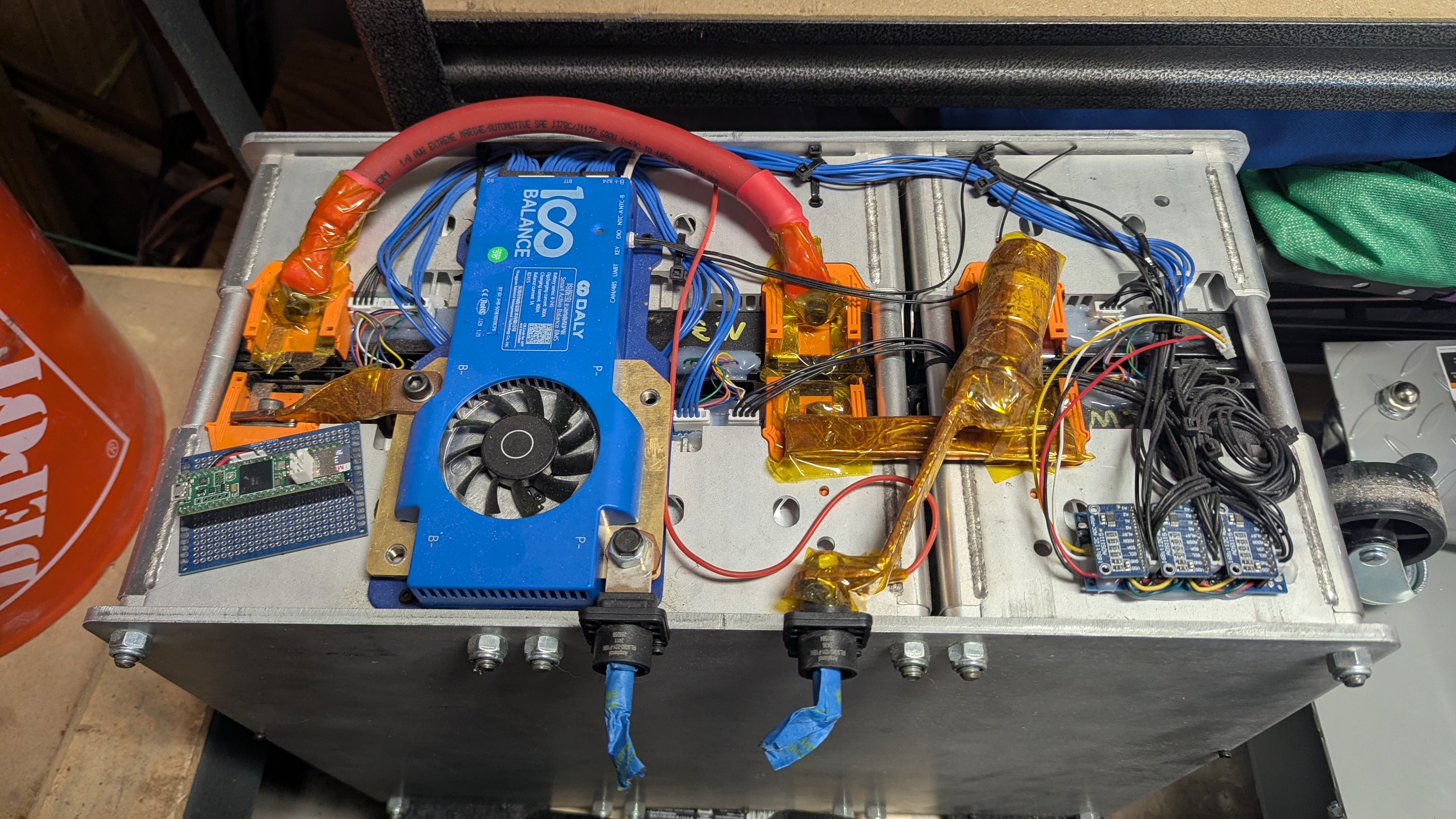

The tractive battery pack is complete and functional, but not integrated into any vehicle.
The resulting assembly is slightly too large to fit in the motorcycle without modifying the bike frame, and the additional range was not needed.

Specifications

24s tractive battery built from surplus Suwonda 4s 150ah lithium-ion battery modules.
Cells: 150ah 3.7v. Continuous charge/discharge 150a. Pulse discharge (10s) 450a. Voltage 4.2v to 2.8v per cell.
4s Module: 26lbs, 14"x6"x4.5". M6 bus-bar terminals.
BMS: Daly/100Balance 300a 24s smart bms with serial/can/bluetooth/rs485 communication.
Pack: 88.8v 150ah nominal, 13.3kWh capacity. 67.2v min 100.8v max. 13.2kw continuous discharge, 45kw max discharge. 164lbs total.
Structure plates: Laser cut 0.25in aluminum 5052 plates.
Temperature monitoring: 4x ads1115 analog-to-digital converters attached to thermistors integrated in modules. Central control from a teensy 4.1.
Charger: 100.8v 40a dumb charger. Charge limit internal to charger, safety shutoff by bms.
