Goal

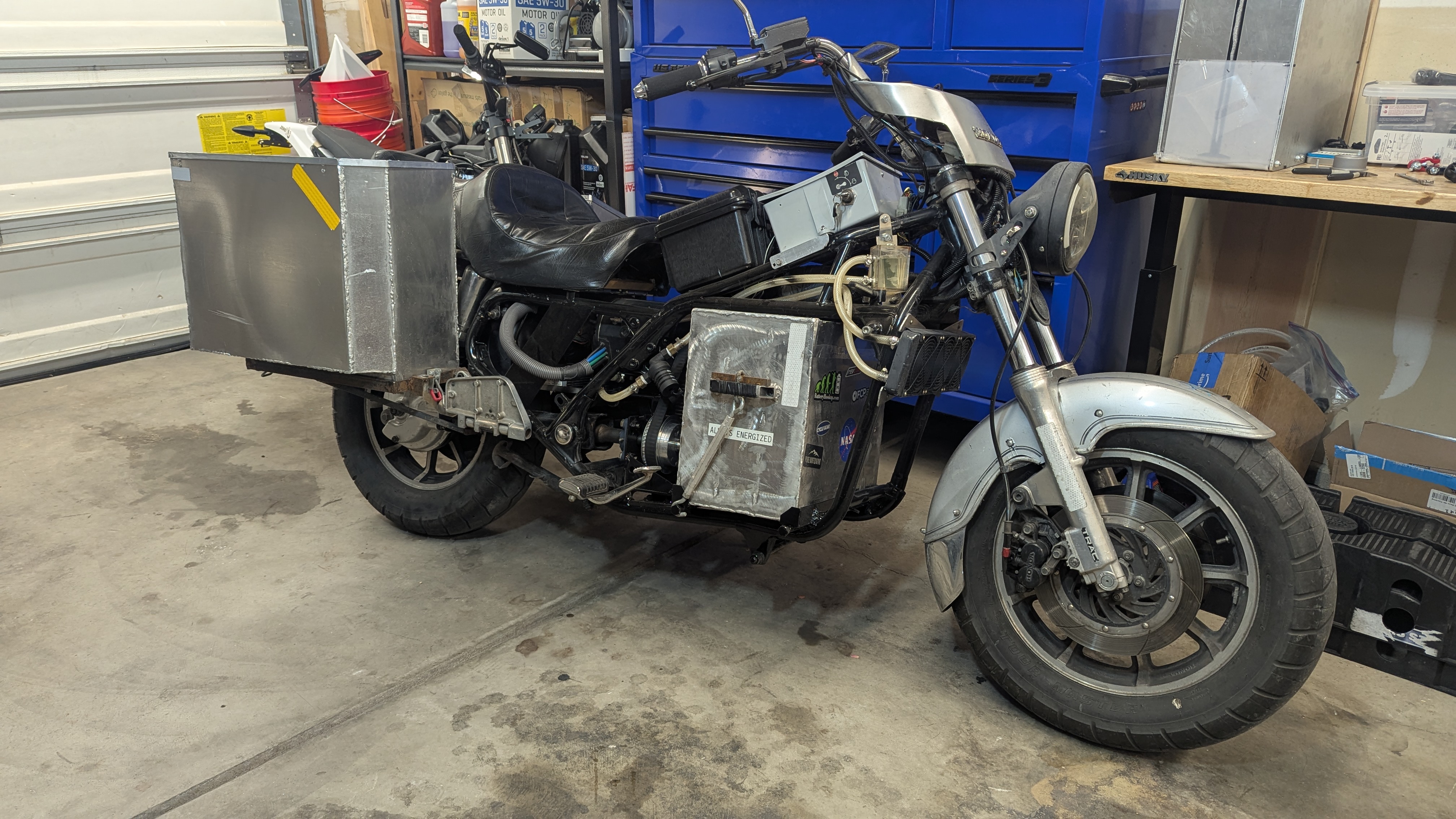

Electric conversion of a 1985 Honda Goldwing, with custon drivetrain and tractive battery.

Requirements

This vehicle was required to be an effective transportation option for my commute to university. It needed adequate range, reliability, and storage space to be daily transportation.

Result / Current Incarnation

This motorcycle is still my daily transport; I have put around 6000 miles on it commuting to school and back. Once I got all the bugs worked out, it has been very reliable with almost no maintenance.
So far I have replaced a couple drive belts and refreshed the motor bearings. There has been no meaningful battery degradation.

Specifications

Overview:
- 50mi range, 70mph top speed
- 1200W charger: charges from standard outlet in 6 hours
- Easy to operate: bicycle style brake controls, cruise control, full power reverse, no clutch, no gearbox, no foot brake

Electric drivetrain specs:
- QS138-90h liquid cooled motor: 13.5KW continuous, 24KW peak power
- 96V 70AH 18650 battery pack, 28s28p 2500mah EVE Li-Ion batteries
- Fardriver ND96680 96V 680A foc motor controller with regenerative braking
- Active water cooling loop for motor

Motorcycle specs:
- 2x DIY 71L capacity cargo boxes - 2mm aluminum construction, locking, water resistant
- Independent low voltage 12v electronics system for lighting, control, and safety interlock system
- 568lbs total weight, 40/60 front rear weight distribution
- Dual disc brakes front, single disc brake rear
- Adjustable air suspension front and rear

Build process:
- Built out of a garage over 2 years while attending college
- Most tools used are basic hand tools; exceptions are: lathe and press for boring and fitting drive pulley, makerspace Harbor Freight welder for frame modifications and battery box welding.

Cost breakdown:
- $7,590 total project cost
- $5,455 for parts and materials used in final build
- $1,001 safety equipment
- $329 tools
- $805 unused/broken/obsolete parts
